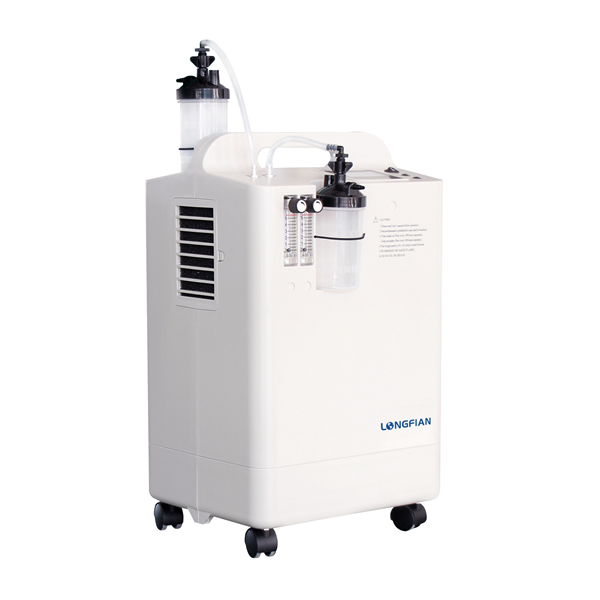

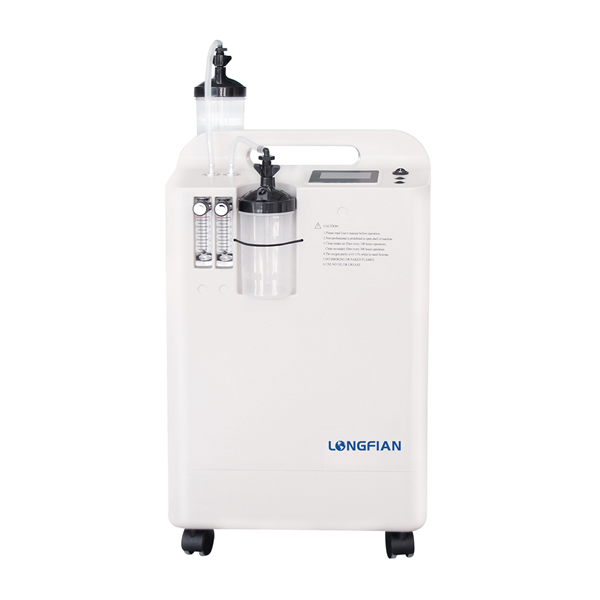

Dual flow oxygen concentrator

Inquiry

Technical Parameters

Model	JAY-5BW
Purity	93% (±3%)
Outlet Pressure	0.04-0.07MPA (6-10PSI)
Sound Level	≤50db
Power Consumption	≤540w
LCD Display	Switch times, operating pressure, present working time, accumulated working time, presetting time from 10mins to 40hours
Alarm	Power failure alarm, High&low pressure alarm
Net weight	22Kgs
Size	360*300*600mm

Features
• Dual flow oxygen concentrator provides oxygen to 2 people at the same time.
• With medical grade oxygen concentration above 90%, it provides better treatment effect for patients with pulmonary fibrosis.
• Innovative cooling technology ensures 24/7/365 operation.
• Humidifier bottle with a pressure relief value of 6PSI. Safe and more comfortable.
• It features simple operation and easy-to-read LCD display.
• Connected to HBOC, the patient's SPO2 can be increased rapidly and effectively.

Application
• Oxygen therapy according to doctor's prescription;
• Oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma etc.
• Connected with HFNC, HBOC or BIPAP to use;
  Connected to HFNC, provide oxygen with stable high concentration, more comfortable.
  Connected to HBOC, rapidly and effectively increase the patient's SPO2.
  Connected to BIPAP, convenient for COPD patients to have oxygen therapy at home;
• Connected with oxygen chamber, perform treatment of cardiovascular and cerebrovascular diseases;
