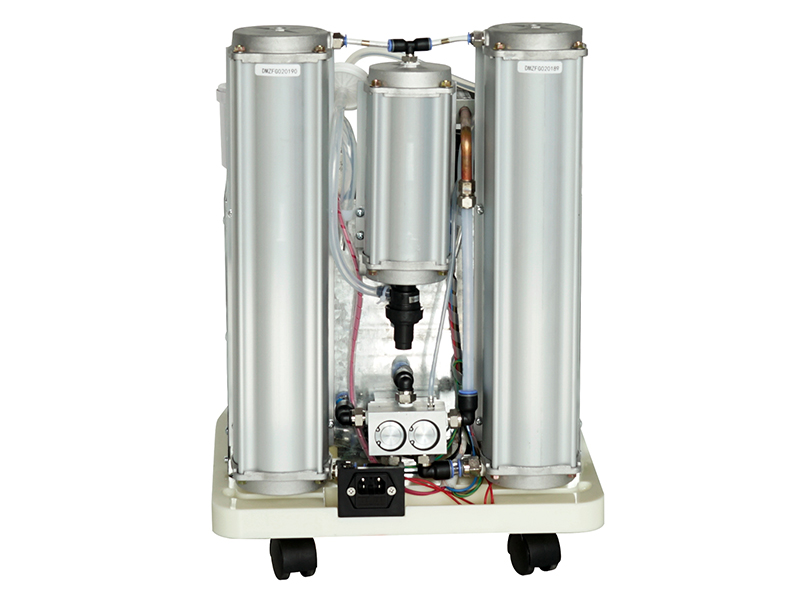

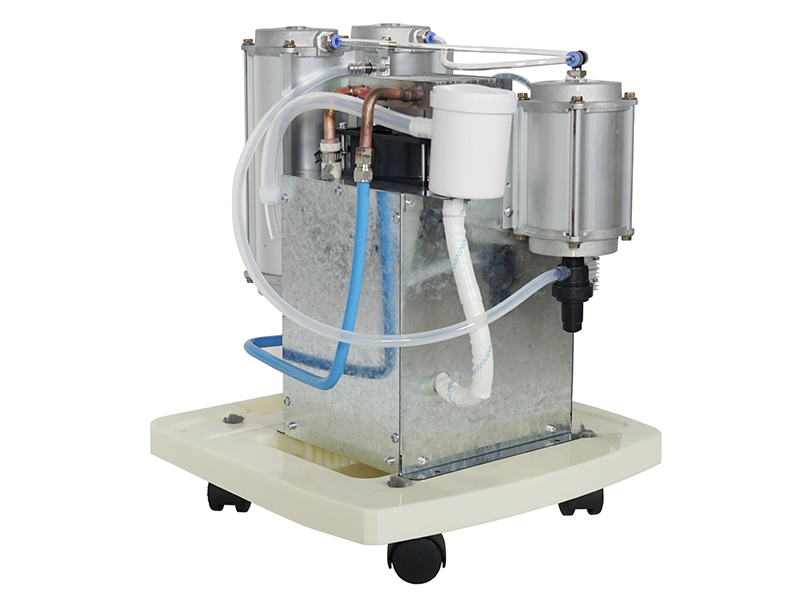

Oxygen Module
The oxygen module can be used as the oxygen source for producing ozone. Ozone is a powerful disinfectant and bleach. No harmful residues remain to be removed after ozone disinfection, so it’s virtually no harmful to people and the environment. Therefore, ozone is often used in the prevention and control of diseases and pests in agricultural, the disinfection of fishing boats, swimming pools, etc., the washing and disinfection of clothes in industrial laundry, etc.
Technical Parameters| Flow Rate | 0.5-2L/min; 0.5-5L/min; 0.5-10L/min |
| Oxygen Concentration | 93% (±3%) |
| Outlet Pressure | 6-10PSI(0.04-0.07mpa); optional :10-30PSI |
| Input Frequency | 50Hz ; 60 Hz |
| Input Voltage | AC 230V ± 10%; AC 110V ±10% |
- PSA technology is adopted to produce oxygen, ensuring the oxygen concentration is stable and reach to above 90%.
- Innovative cooling technology allows for 24/7/365 operation.
- Low power consumption, energy and electricity saving.
- The integrated modular oxygen production system can support large-scale ozone generator supporting oxygen source.
- Our 1-10L oxygen module can meet your different needs.
