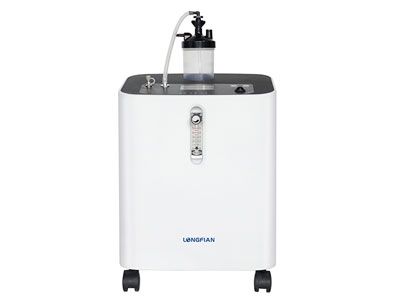

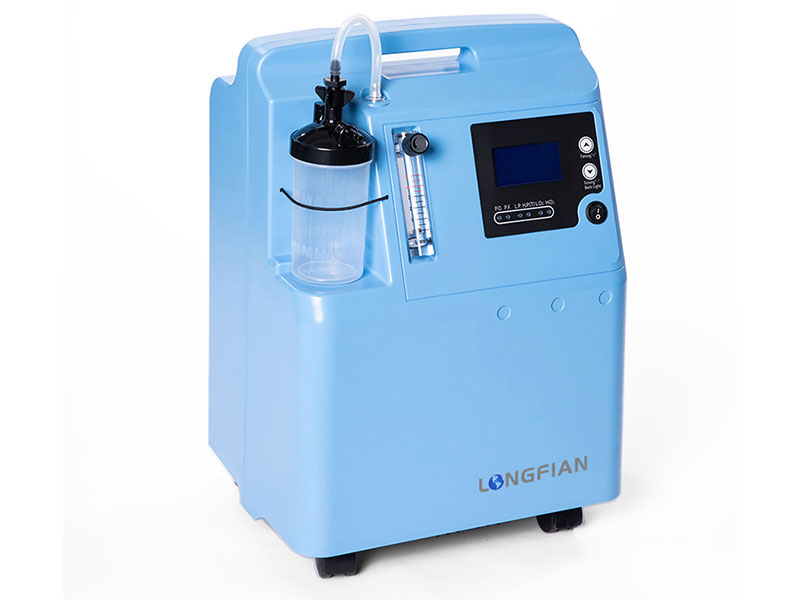

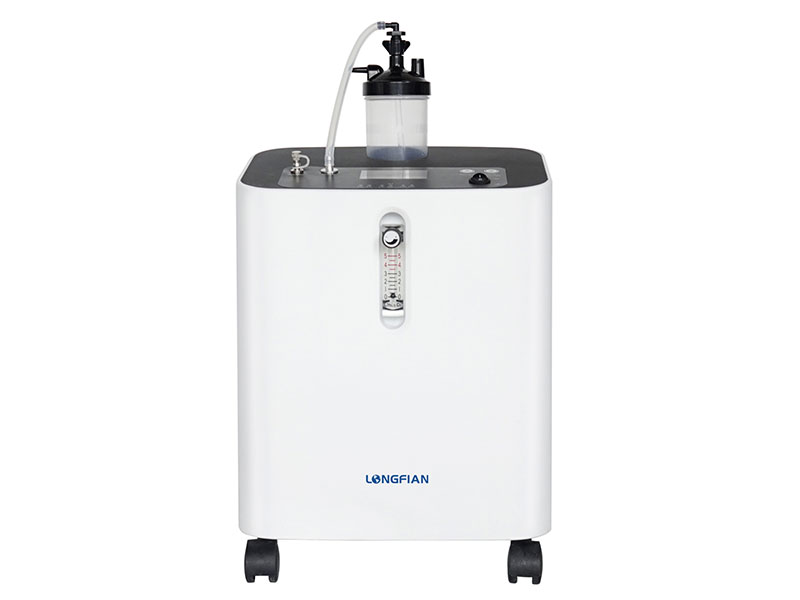

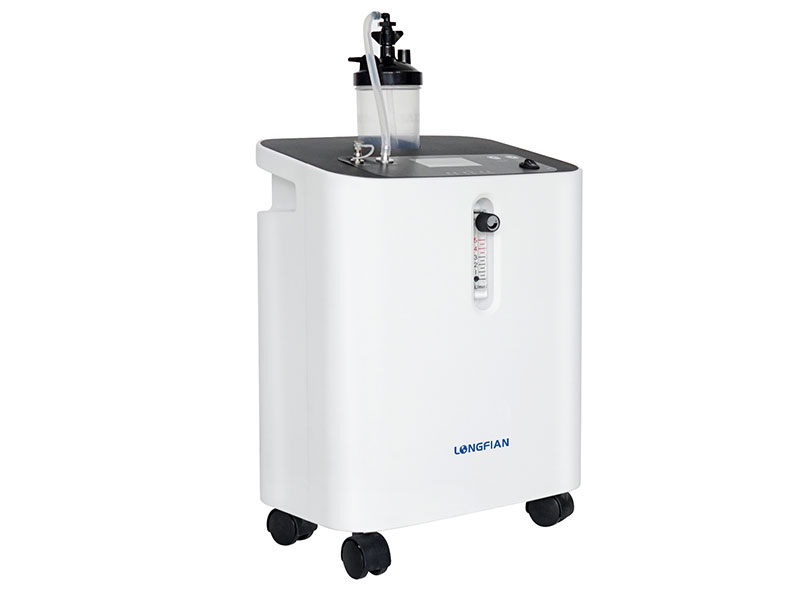

3L Oxygen Concentrator
As we know, the air contains 21% oxygen, 78% nitrogen, 0.9% argon and 0.1% other gases. An oxygen concentrator separates oxygen from ambient air through an unique process called Pressure Swing Adsorption (PSA). It operates at near-ambient temperature according to different gases' molecular characteristics and affinity for an absorbent material inside the absorption towers. The only raw material for the process is ambient air. As PSA is a well-established gas separation technique, PSA oxygen concentrators supply high oxygen concentration on site in a reliable and economical way.
Our JAY-3AW/3BW/3EW 3L health care oxygen concentrator has light weight and is easy to use. After being connected to power, this oxygen equipment can produce oxygen quickly. This is a safe and trustworthy product with service life longer than 5 years.
JAY-3AW
| Model |
|
| Flow Rate | 0.5-3L/min |
| Oxygen Purity | 93% (±3%) |
| Outlet Pressure | 6-10 PSI (0.04-0.07 Mpa) |
| Net Weight | 15kg |
| Power Consumption | ≤280W |
| Input Frequency | 50Hz ; 60Hz |
| Put Voltage | AC230V ± 10%; AC110V ±10% |
| Alarm | 1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm: When oxygen purity is > 82%, blue light illuminates; When oxygen purity is < 82%, red light illuminates for indicating low purity; |
JAY-3EW
| Model | |
| Flow Rate | 0.5-3L/min |
| Oxygen Purity | 93% (±3%) |
| Outlet Pressure | 6-10PSI (0.04-0.07Mpa) |
| Net Weight | 11kg |
| Sound Level | ≤38dB |
| Power Consumption | ≤200W |
| Input Frequency | 50Hz; 60Hz |
| Put Voltage | AC230V±10%; AC110V±10% |
| Alarm | 1. Power failure alarm 2. High/low pressure alarm 3. Low oxygen concentration alarm |
JAY-3EP
| Model | |
| Flow Rate | 0.5-3L/min(continuous flow) |
| Modes | Pulse dose; continuous |
| Pulse Mode (Settings) | Setting1: 6L; setting2: 9L |
| Outlet Pressure | 0.09Mpa |
| Oxygen Concentration | 93%(±3%) |
| Sound Level | ≤39dB |
| Power Consumption | 280W |
| Net Weight | 12kg |
| Dimension | 335mm*215mm*450mm |
| Alarm | 1. Power off alarm 2. High & low pressure alarm 3. Low oxygen concentration alarm 4. High temperature alarm |
- Ultra quiet, small size and light weight.

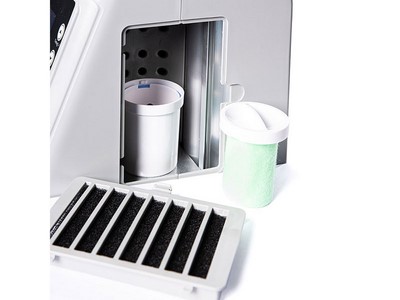

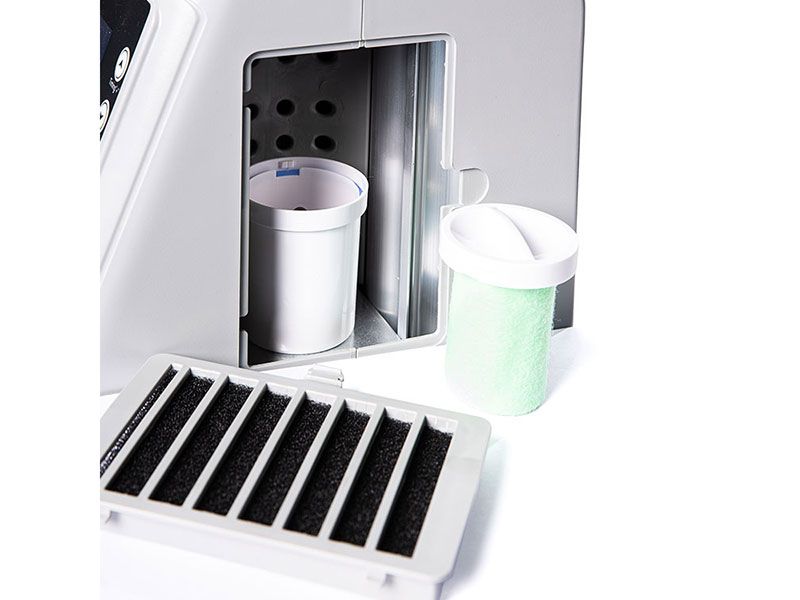

- Convenient daily maintenance.

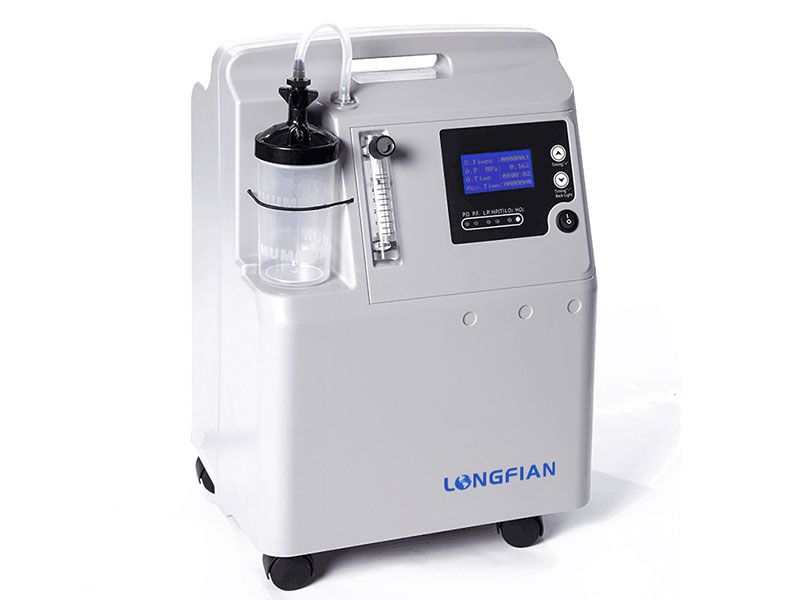

- Easy to read LCD display and simple control.
- With wheels and handle, easy to move.
- Inhale high oxygen concentration

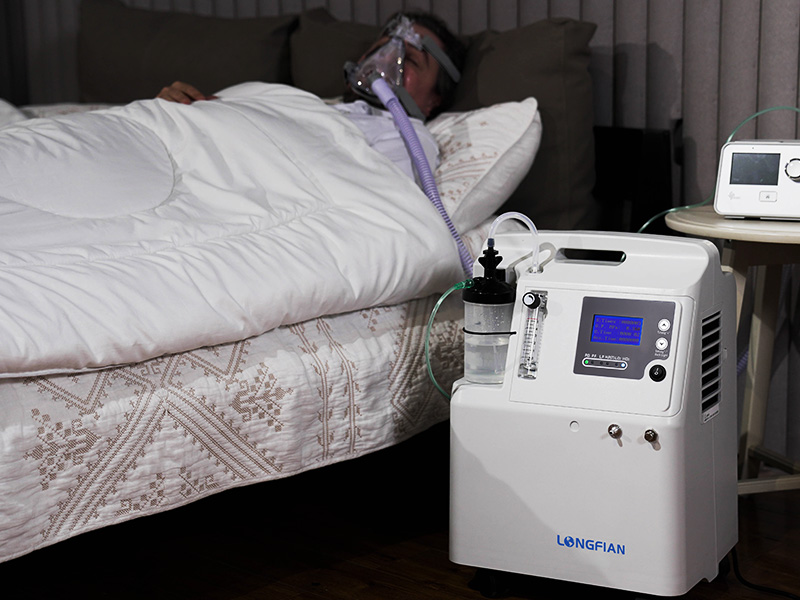

- Patient care
Our oxygen concentrator is suitable for patients with COPD, emphysema, pulmonary heart disease, or patients who recommend oxygen inhalation. - Oxygen supplement in plateau area
This oxygen machine is also suitable for healthy people who live or work in thin air plateaus, mines or high-rise closed office buildings. -
Sub-healthy people stay healthy
People who are in sub-health state due to declining body function, poor living environment, high work and life pressure. -
Pregnancy & Health Care
People like pregnant women, students, white-collar workers, government officials, and others with long-term brain and mental stress for oxygen supplement to keep health.
- Nebulizer (Atomizer)
- Maintenance alarm: alarm for maintenance after 3000 hours' operation.
- High temperature alarm: alarm for high temperature when the internal system temperature is above 50 ℃.
- Pulse oximeter: fingertip pulse oximeter is available for monitoring patient's oxygen saturation on site.

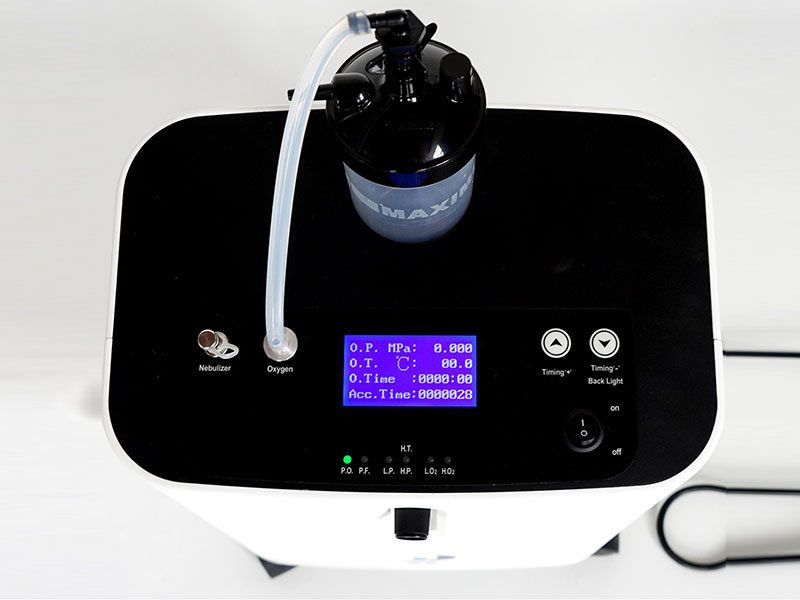

- LCD display: showing accumulated time, present working time and preset time.
