Hypoxic Generator

High-altitude training, also known as hypoxia training, is a training regimen that focuses on improving athletic performance and physical fitness. Hypoxic generator is used to simulate oxygen concentration at altitude up to 6500m above sea level. Athletes and mountaineers simulate the plateau environment for training anywhere. It helps them adapt to the high altitude better. Hypoxia treatment also plays an important role in numerous medical applications.

Inquiry

Technical Parameters

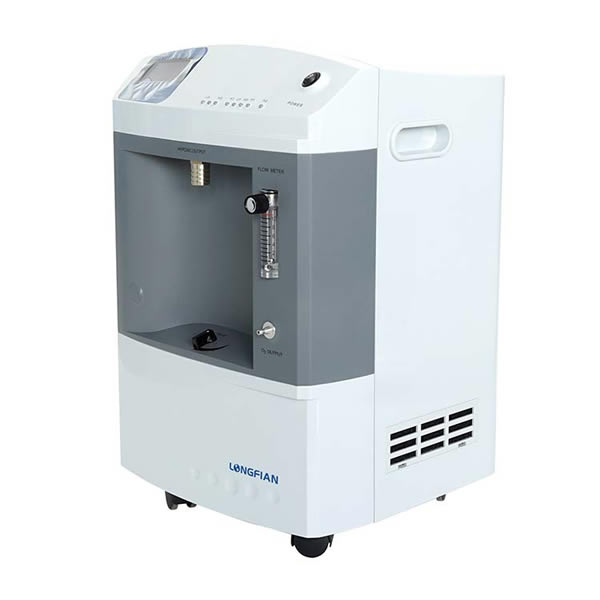

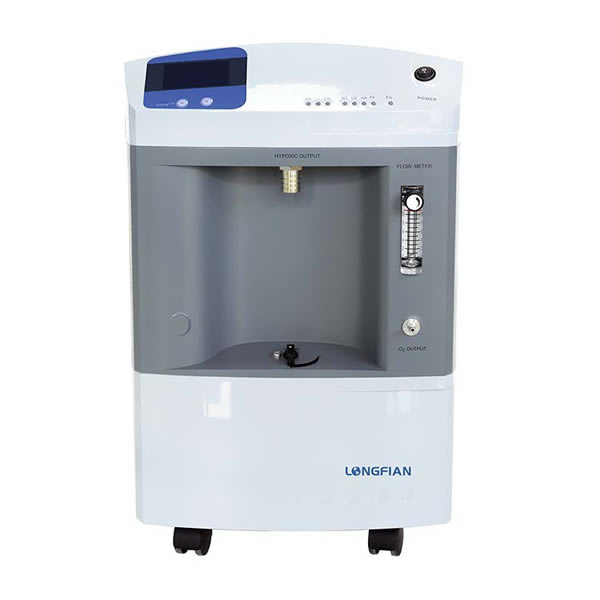

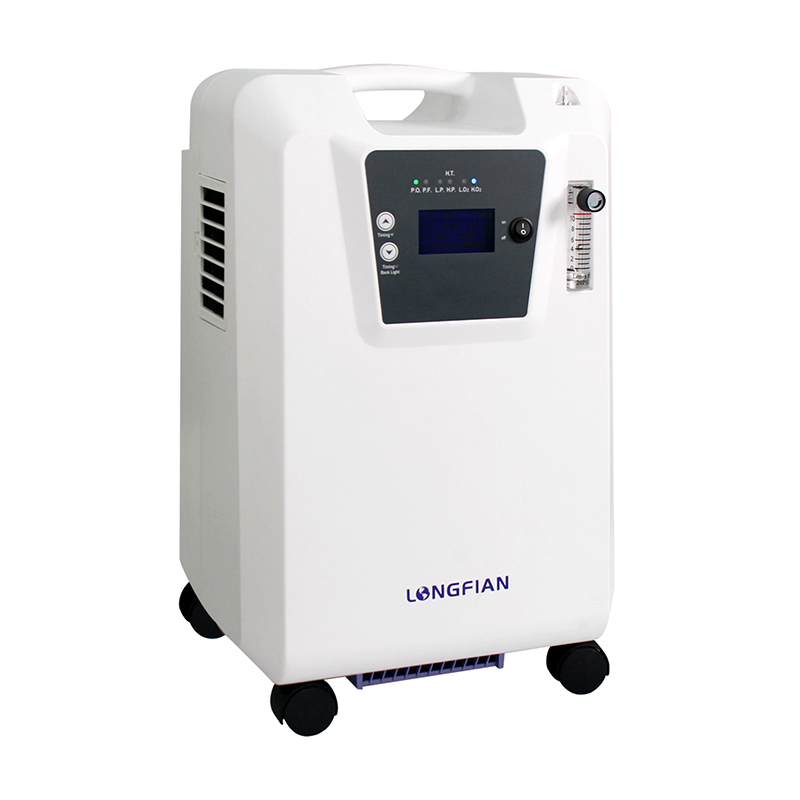

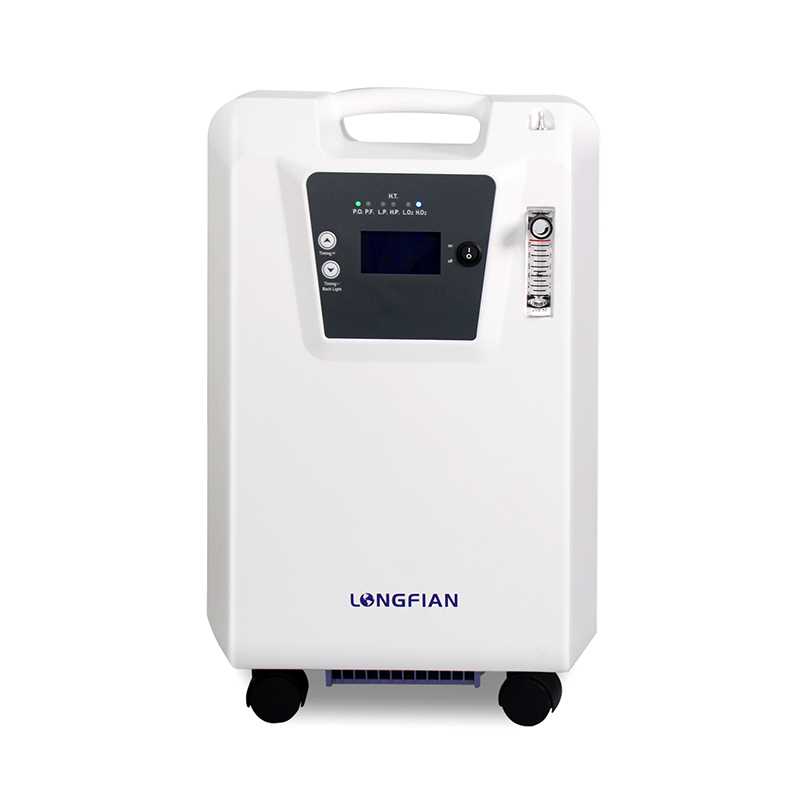

Model	JAY-10H
Hypoxic Flow	100LPM
Oxygen Purity	93% (±3%)
Simulated Altitude	0-6500M (0-21330ft)
Optional Function	Pulse oximeter; monitor system
Hypoxic Purity	9%-20.9%
Power Consumption	≤710W
Input Frequency	50Hz; 60 Hz
Input Voltage	AC230V±10%; AC110V±10%

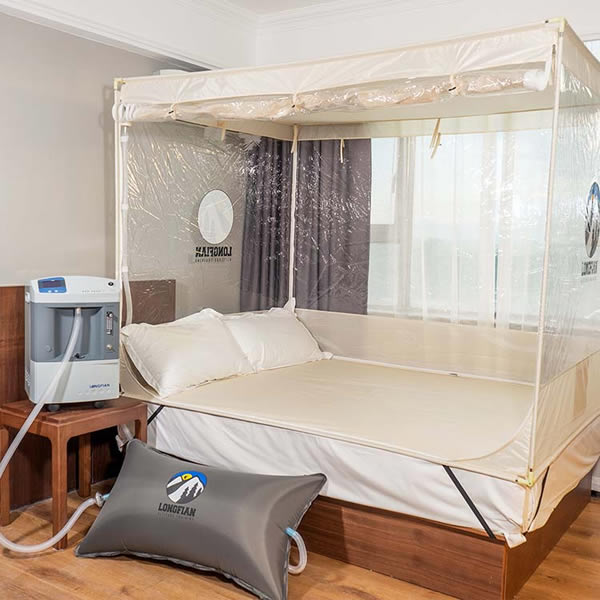

Application	Suitable for using at home, GYM or sports training center;

Inquiry

Technical Parameters

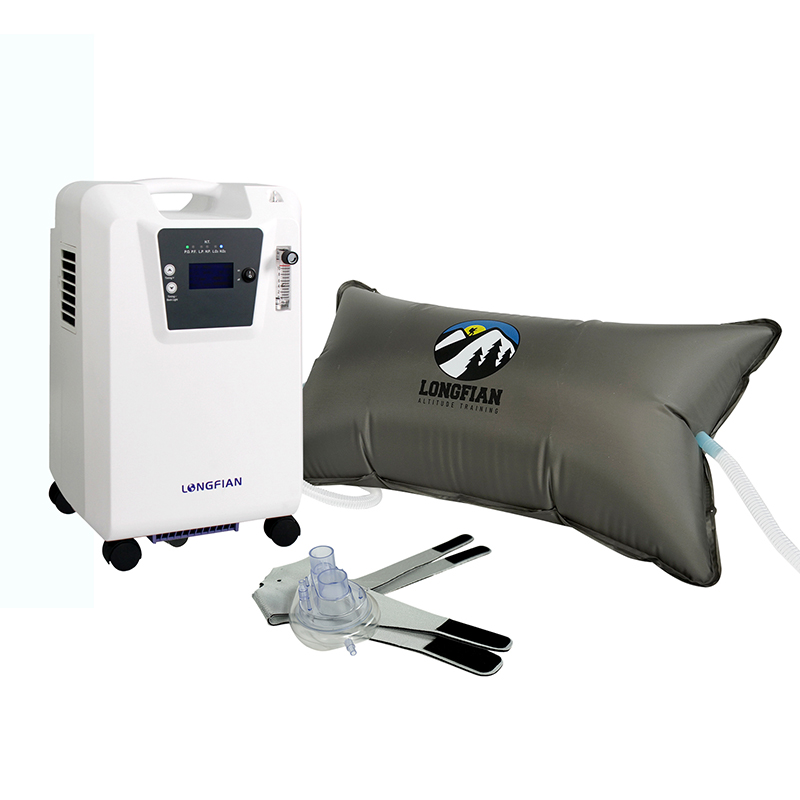

Model	JAY-10FW-H
Hypoxic Flow	100LPM
Oxygen Purity	93% (±3%)
Simulated Altitude	0-6500M (0-21330ft)
Optional Function	Pulse oximeter; monitor system
Hypoxic Purity	9%-20.9%
Power Consumption	≤710W
Input Frequency	50Hz; 60 Hz
Input Voltage	AC230V±10%; AC110V±10%
Application	Suitable for using at home, GYM or sports training center;

Inquiry

Technical Parameters

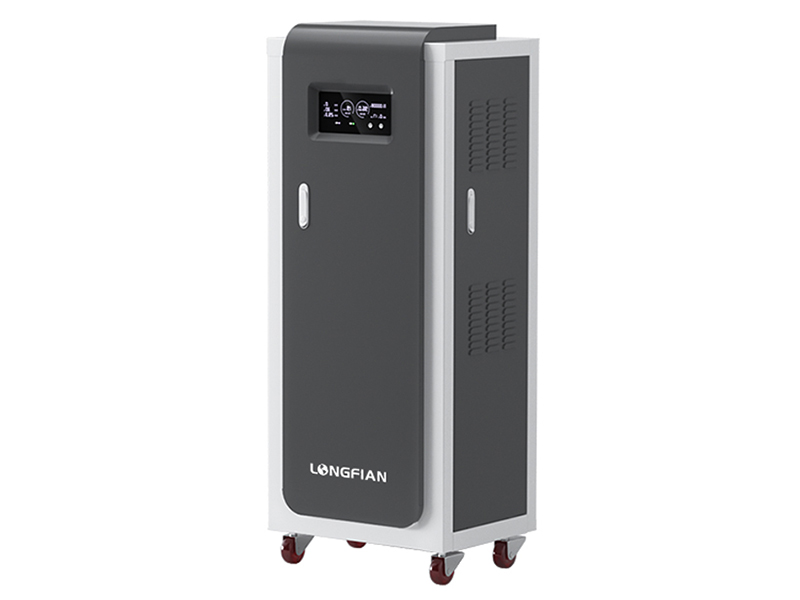

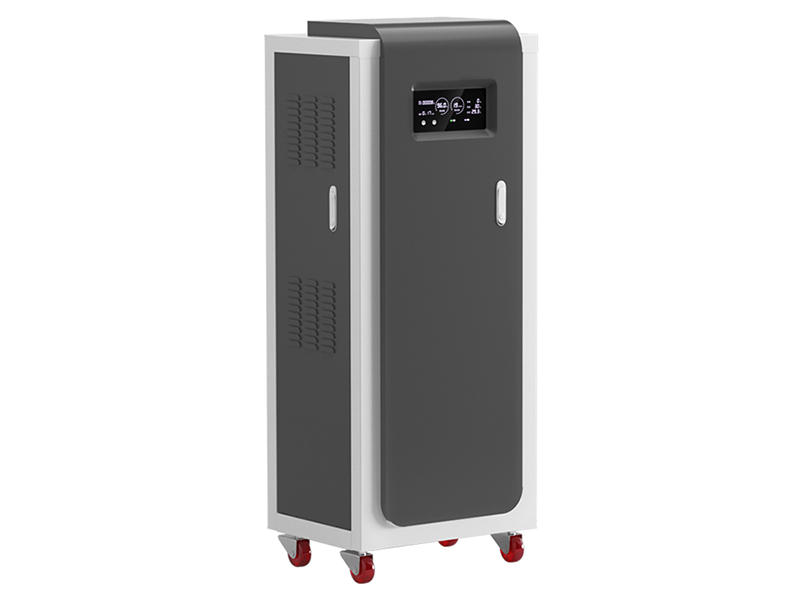

Model	JAY-10H	JAY-20H	JAY-40H	JAY-60H
Hypoxic Flow	100LPM	200LPM	400LPM	600LPM
Hypoxic Concentration	9%-20.9%	9%-20.9%	9%-20.9%	9%-20.9%
Outlet Pressure	6-10Psi	6-10Psi	6-10Psi	6-10Psi
Oxygen Concentration	93%(±3%)	93%(±3%)	93%(±3%)	93%(±3%)
Simulated Altitude	0-6500m(0-21330ft)	0-6500m(0-21330ft)	0-6500m(0-21330ft)	0-6500m(0-21330ft)
Sound Level	≤50dB	≤55dB	≤58dB	≤60dB
Power Consumption	≤550W	≤1100W	≤2200W	≤3300W
Alarms	Power failure alarm, high/low pressure alarm	Power failure alarm, high/low pressure alarm	Power failure alarm, high/low pressure alarm	Power failure alarm, high/low pressure alarm
Net Weight	27kg	95kg	160kg	245kg
Dimension	365*375*600mm	600*400*1380mm	760*540*1380mm	760*540*1960mm
Optional	1. Pulse oximeter 2. Monitor system	1. Pulse oximeter 2. Monitor system	1. Pulse oximeter 2. Monitor system	1. Pulse oximeter 2. Monitor system

• Hypoxic purity 9%-20.9% to simulate different elevation heights
• Continuous operation 24/7

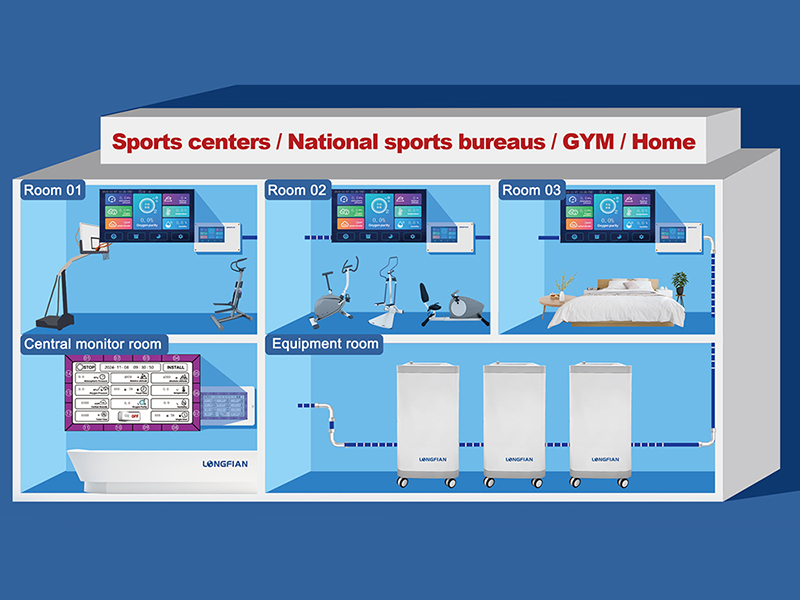

• The hypoxic training system consists of hypoxic generator, oxygen controller and LCD monitor, which is widely used in sports centers, national sports bureaus and gyms to improve athletes' physical performance.
• It can simulate different altitudes from 0-5000 meters, achieve hypoxic purity from 9% to 20%. Each room is also equipped with LCD monitor to show the hypoxic purity, temperature, humidity, altitude and CO₂ content.
• The central monitor can collect all data from individual LCD monitor in each room, thereby monitoring the changes in SpO₂, blood pressure and pulse of each athlete during simulated altitude training.
• Equipped with wrist or finger-clip oximeter to monitor athletes SpO₂, pulse at any time and upload the data to the central monitor.

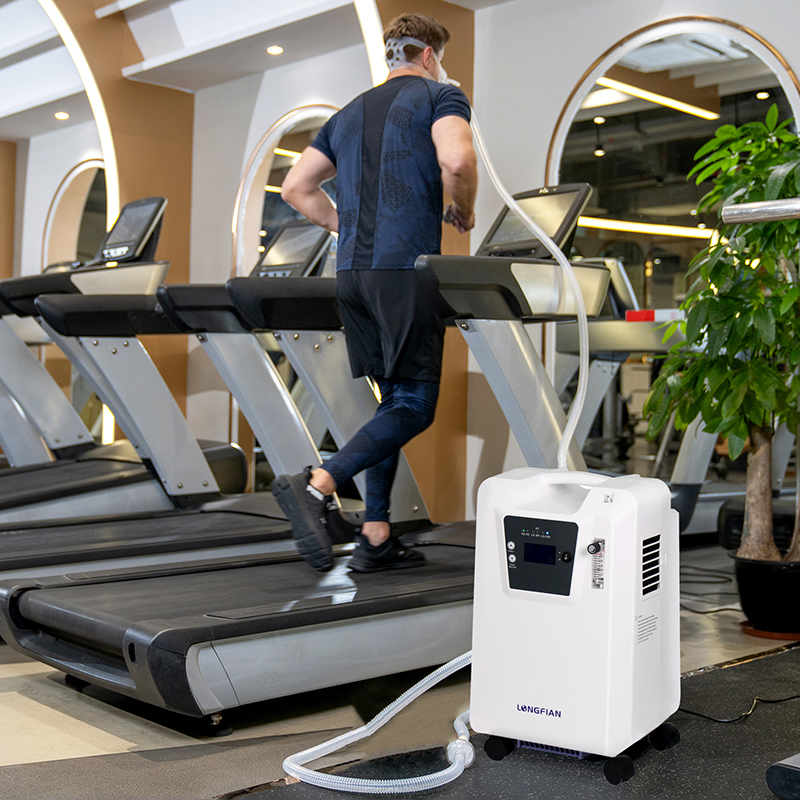

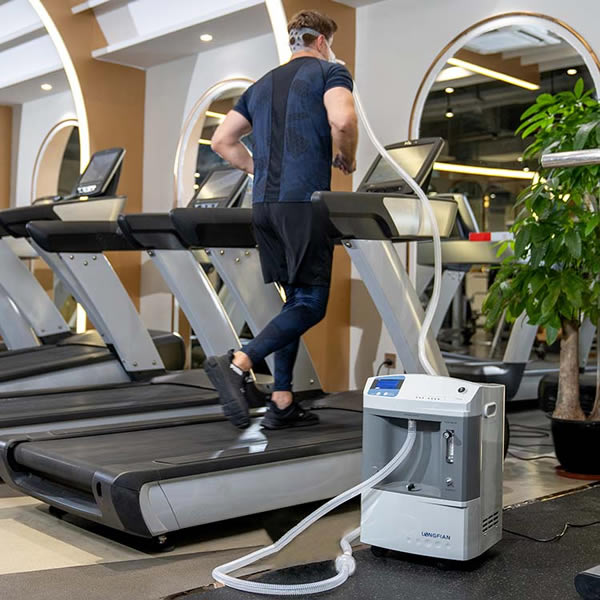

• For sport center/gym/home: improve athletes performance
• For mountaineers: adopt to high altitude environment, relieve altitude sickness
• For military: survival training for high altitude environment
• For health care and medical: adjuvant therapy for diabetes, asthma, lung illnesses (For example, post-cure treatment of Covid-19 patient), heart and vascular disease and other injuries.
