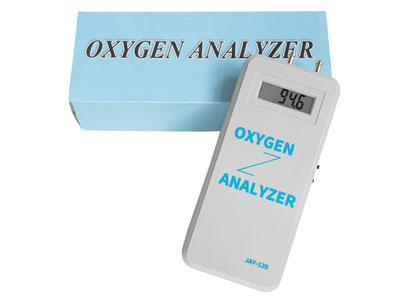

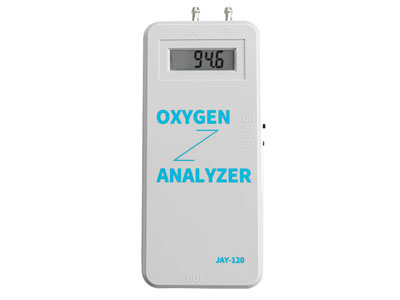

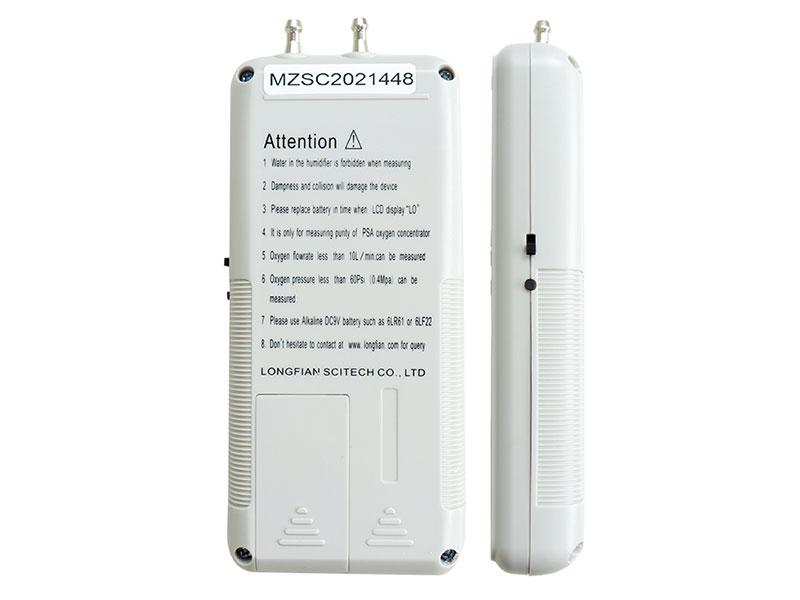

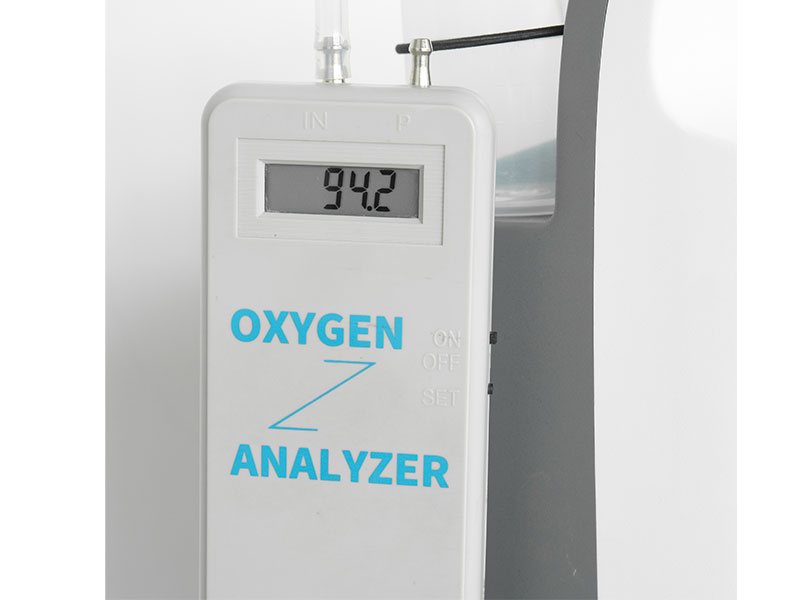

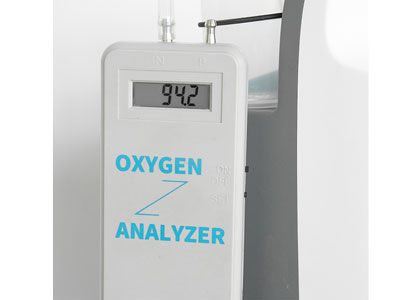

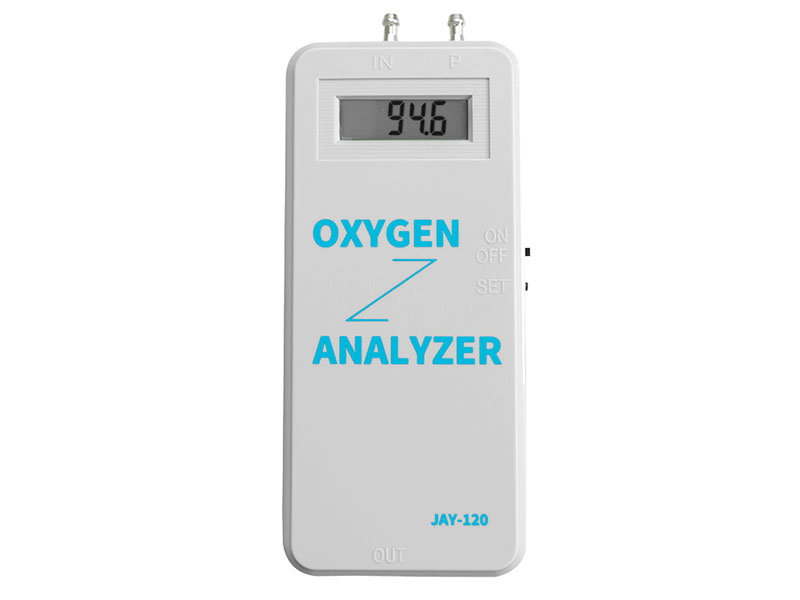

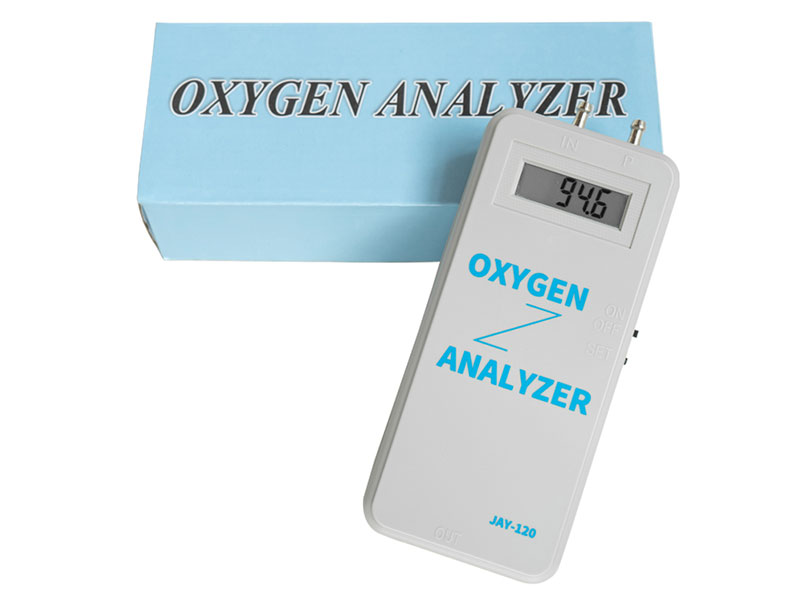

Oxygen Analyzer
Designed to measure oxygen concentration, oxygen flow and outlet pressure for PSA oxygen concentrator.
| Model |
|
| Operating Voltage (V) | DC 9V |
| Weight (g) | 205g (without battery) |
| Dimension (mm) | 185*80*31mm |
| Relative Humidity | 5%～85%RH |
| Operating Temperature (℃) | 5℃~55℃ |
| Storage Temperature (℃) | -5℃~65℃ |
| Flow Detection Range | 0-10 L/min |
| Flow Detection Accuracy | ±0.2 L/min |
| Oxygen Purity Detection Range（V/V） | 21.0% - 96.0 % |
| Oxygen Purity Detection Accuracy（V/V） | ± 2% |
| Pressure Detection Range | 0-21 PSI |
| Pressure Detection Accuracy | ±1 PSI |
- The oxygen analyzer measures oxygen concentration flow using ultrasound technology. It has the characteristics of high accuracy, strong anti-interference ability, rapid response, long-term stability, no need for regular adjustment, and long lifespan
- The pressure test adopts imported modules with high accuracy
