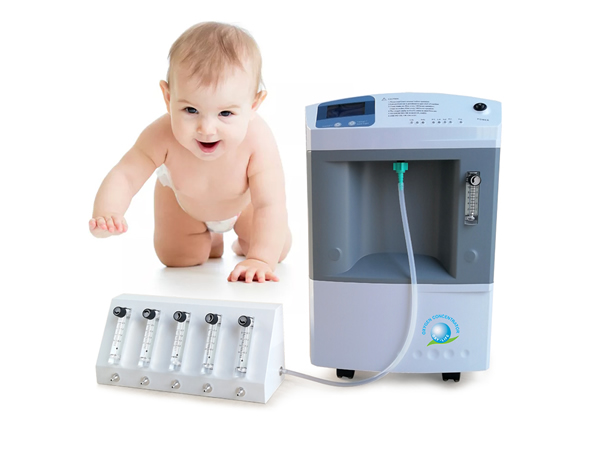

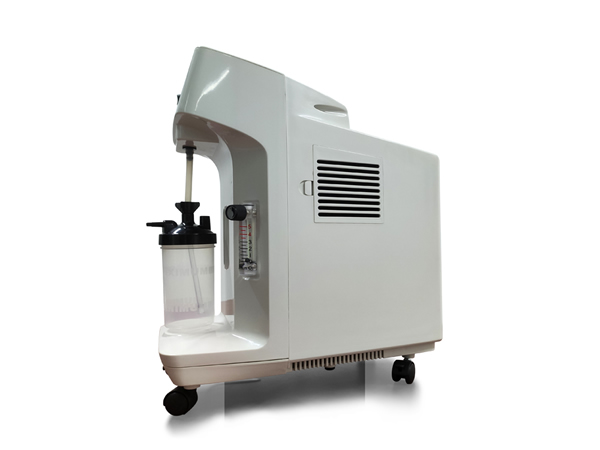

Pediatric Oxygen Concentrator
Considering the actual need that oxygen supply for babies should be in low flow rate, we specially design the pediatric oxygen concentrator which guarantees safe oxygen inhalation for babies. Combing with the separate flow meter whose minimum scale is 0.125L/min, our oxygen producing machine is suitable for newborn infants, babies and adults.
Technical Parameters of JAY-2 Oxygen Concentrator| Model | JAY-2 |
| Flow Rate | 0-2LPM |
| Purity | 93% (±3% ) |
| Outlet Pressure | 0.04-0.07MPA (6-10PSI) |
| Sound level | ≤45db |
| Power Consumption | ≤200VA |
| LCD Display | Present working time, accumulated working time |
| Alarm | Power Failure alarm, Low purity alarm (Optional) |
| Net Weight | 11kg |
| Size | 435*240*410mm |
Application:
The flow rate is 0-2L, suitable for homecare and health care.
Optional

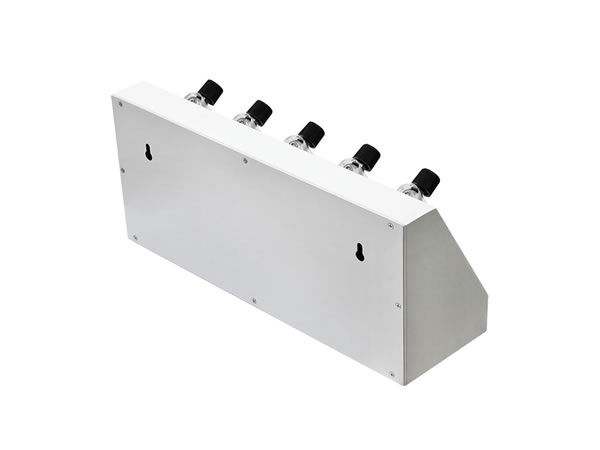

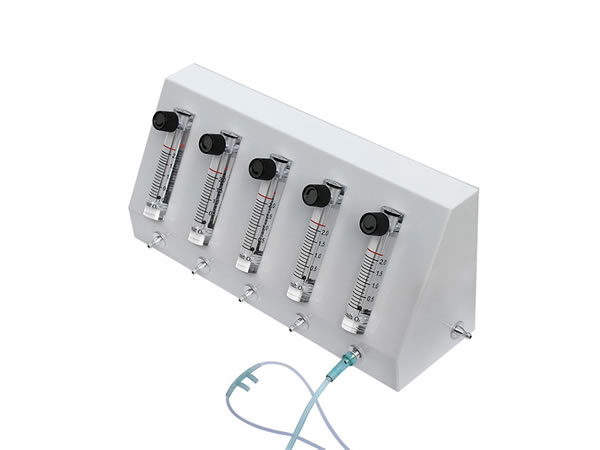

1. Flow splitter is a device through which oxygen in one inlet can be divided into several flows for more patients to inhale at the same time.
2. The 5 flow meters in this flow splitter can work independently or together by adjusting flow knob.
3. Minimum oxygen flow for a single oxygen outlet can be 0.125L/Min.

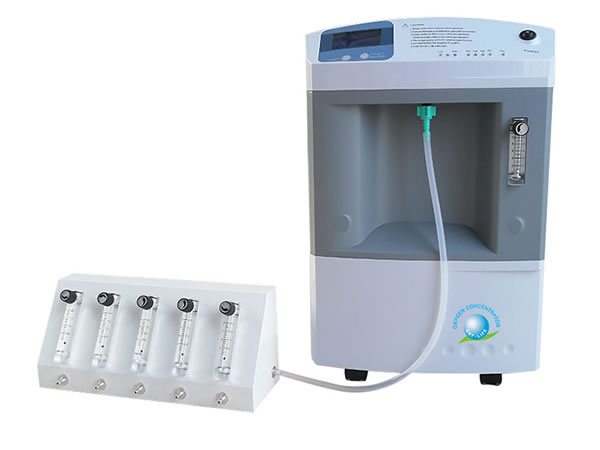

4. Considering the actual need that oxygen supply for babies should be in low flow rate, we specially design the pediatric oxygen concentrator which guarantees safe oxygen inhalation for babies. Combing with the separate flow meter whose minimum scale is 0.125L/min, our oxygen producing machine is suitable for newborn infants, babies and adults. Here we recommend you the flow splitter oxygen concentrator for babies.
| Model | JAY-500 (Flow Splitter) |
| Dimension (cm) | 38.1(L)*11.4(W)*16.6(H) |
| Weight | 2.5KGS |
| Operating temperature | 5℃ to 40℃ |
| Storage temperature | -1℃ to 60℃ |
| Accuracy | ±5% |
| Inlet pressure | 7PSI / 20PSI / 60PSI |
| Outlet ways | 2 / 3 / 4 / 5 or customization |
