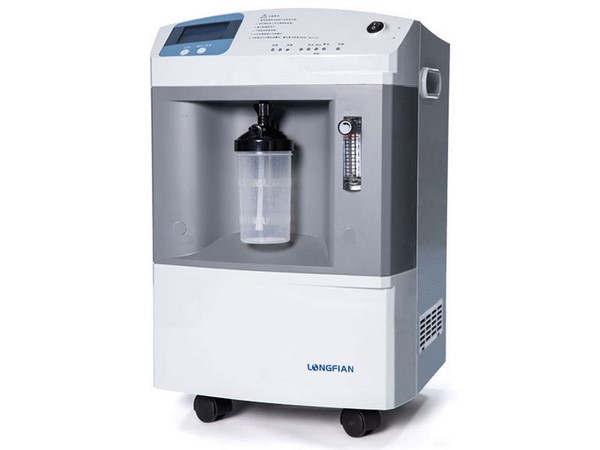

JAY-8

0-8L/Min Oxygen Concentrator

Our JAY-8 0-8L/min oxygen concentrator has got the certificates of ISO and CE. Compared with other similar products on the market, our oxygen concentration equipment makes lower noises while working.

Application
This oxygen producing machine is mainly used for medical purpose. It is suitable for patients who have respiratory diseases (allergy, asthma, chronic bronchitis, chronic obstructive pneumonia), cardiovascular diseases (high blood pressure, coronary heart disease), cerebrovascular diseases (stroke), blood diseases (anemia) and diabetes to inhale oxygen.

In addition, our oxygen concentrator is also effective on preventing, relieving and curing geriatric diseases. Although aging is a natural process will not definitely cause diseases, it inevitably increases the risk of having diseases since human physical accommodation function and immunologic function are declining as aging. Supplementing oxygen regularly and timely will compensate for the insufficient oxygen in body and keep body organs run normally so as to prevent disease caused by absence of oxygen. Using our oxygen c concentration machine will help senior age people keep healthy.

Note
In order to ensure the normal operation of oxygen concentrators, the filter cotton should be cleaned timely. The first and second layer of filter cotton should be cleaned or replaced after the oxygen generator has worked for 200 hours and 500 hours, respectively. Every one or two months, the machine housing can be cleaned by soft towel with little detergent, and then wipe it up with dry towel, under the condition of power off.

Features
1. Our oxygen concentrator is configured with an atomization conversion hub to conduct nebulization therapy. This machine can also be connected to a home respirator.
2. The flow rate is adjustable within the range of 0-8L/min. The oxygen concentration will be higher than 90%.

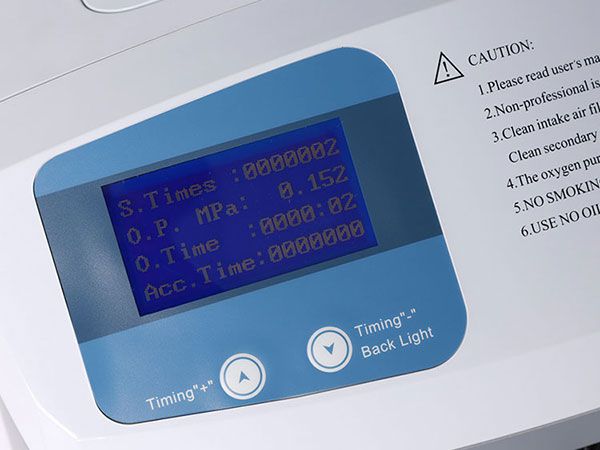

3. The large LCD on our oxygen equipment can display the operating pressure, internal operating temperature, present working time, accumulated working time and the preset time.
4. This oxygen generation plant is designed with timing function. The machine will stop working when it reaches to the preset time.
5. The JAY-8 oxygen concentrator adopts imported molecular sieve and humidification bottle whose pressure relief valve value is 6psi.
6. This oxygen equipment has double flow humidification bottles thus it allows two persons to inhale oxygen with the same machine simultaneously.

Technical Parameters

Model JAY-8
Flow rate 0-8L/min
Oxygen Concentration 93% (±3%)
Outlet Pressure (Mpa) 0.04-0.07Mpa
Sound Level ≤50dB
Power AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz)
Power Consumption ≤480W
LCD display Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours
Alarm Power failure alarm; high/low pressure alarm
Net Weight 27kg
Size 365×375×600mm

Optional
1. Nebulizer (Atomizer)
2. Low concentration alarm: when oxygen concentration is 82% or above, the green light will be on; when the oxygen concentration is blow 82%, the red light will be on.
3. Maintenance alarm: alarm for maintenance after 3000 hours' operation.
High temperature alarm: alarm for high temperature when the internal system temperature is above 50 ℃.
5. Pulse oximeter: fingertip pulse oximeter is available for monitoring patient's oxygen saturation on site.
6. Small LCD display: showing accumulated time, present working time and preset time.
