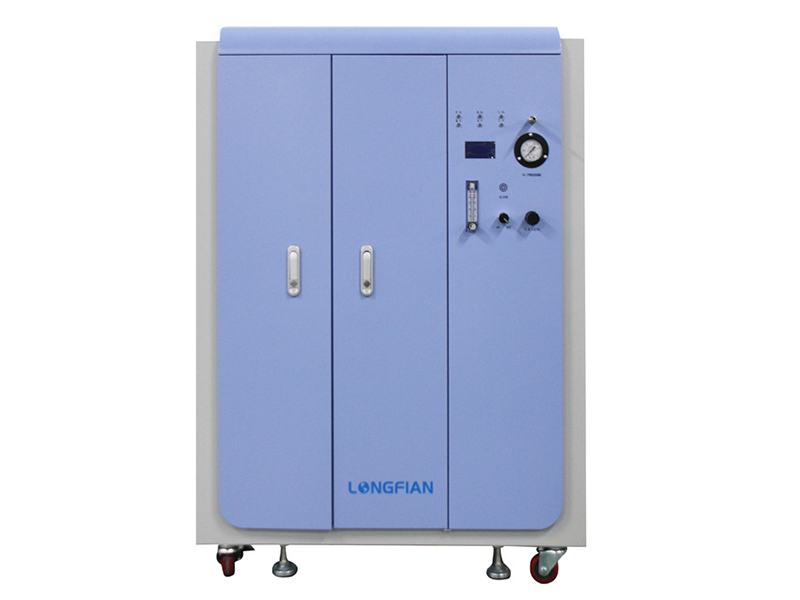

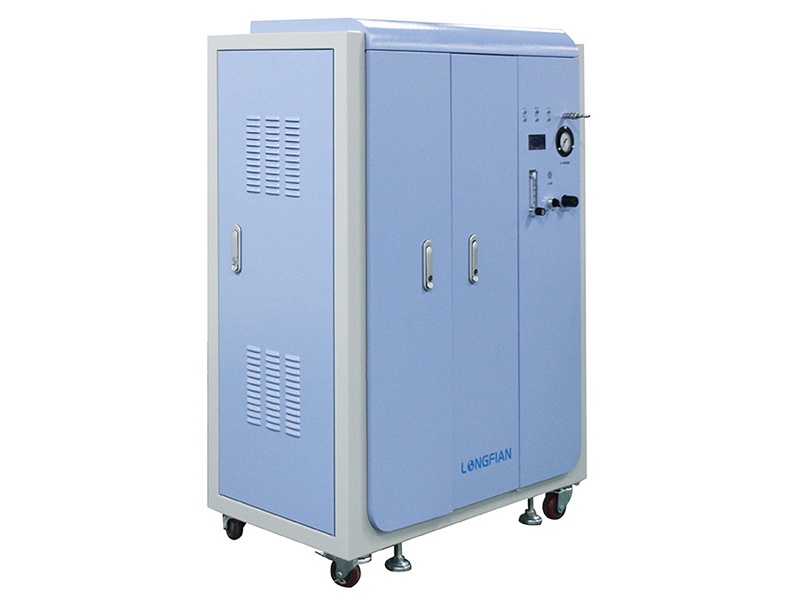

Self-contained Oxygen Concentrator with Air Vacuum
| General | Model | JAY-2A | |
| Type 20 | Type 50 | ||
| Dimension | 800*440*660mm | 720*630*740mm | |
| Weight | 110kg | 120kg | |
| Power Supply | Mains | 220V AC, 50/60 Hz | 220V AC, 50/60 Hz |
| Power Consumption | 1200W | 1600W | |
| Switch-on Current | 7.0 A | 7.0 A | |
| Output Data | Output Pressure | 60Psi | 50Psi |
| Oxygen Flow | Max. 10 L/min | Max. 10 L/min | |
| Compressor Air Flow | Max. 20 L/min | Max. 50 L/min | |
| Oxygen Concentration | 93%±3% | 93%±3% | |
| Vacuum | 0...-0.7 bar | 0...-0.7 bar | |
| Noise Level | ≤60 dB | ≤60 dB | |
| Monitoring | Pressure Gauge | Air, O2, VAC | Air, O2, VAC |
| Supervision | Alarms Visual, Audible | Low purity, high temperature, high & low pressure, power failure | Low purity, high temperature, high & low pressure, power failure |
- Features
- Oxygen, medical air and vacuum can be supplied in one unit.
- 10L Oxygen, 20-50L medical air with 4 bar, and -0.7 bar vacuum are available.
- It is mainly used to connect with ventilator and anaesthesia machine.
- The vacuum function is to absorb bleeding, exudate, pus, sputum to reduce the infection during surgery.
