EspañolIndustrial Oxygen Concentrator
- Chemical industry application
- Welding

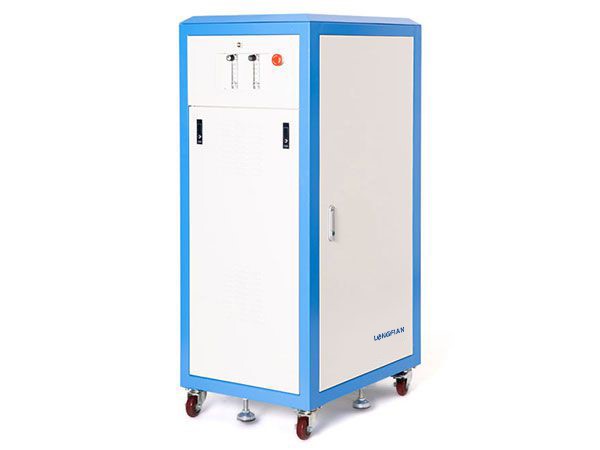

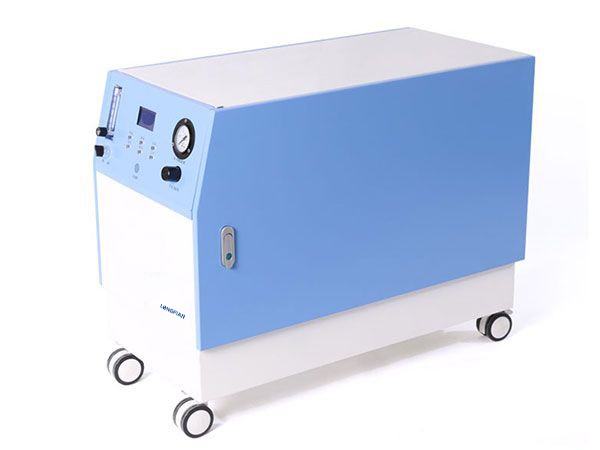

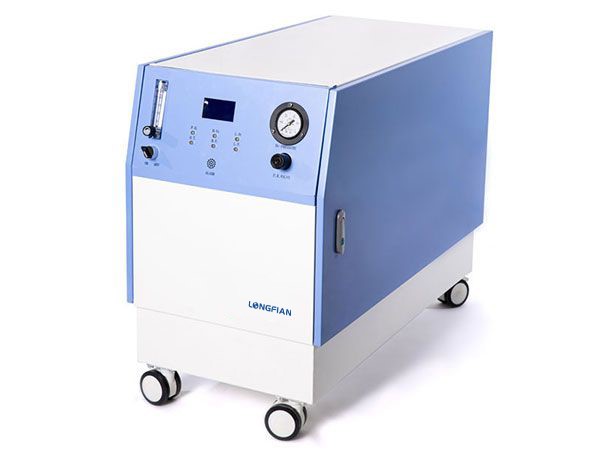

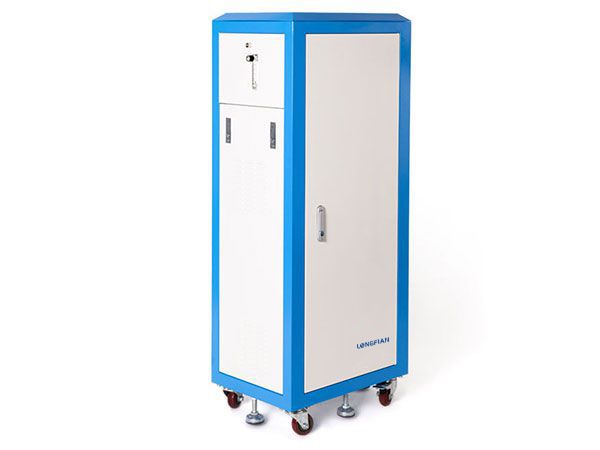

Industrial oxygen usually includes high pressure oxygen and low pressure oxygen. Industrial oxygen are mainly used in welding and cutting process in the fields of metallurgical industry, chemical industry, environmental protection, building industry, light industry, medical treatment, aquaculture, biotechnology and wastewater treatment. Here we recommend you the JAY-10, JAY-15 and JAY-20 oxygen concentrators suitable for supplying industrial oxygen.
Characteristic and Application of High Pressure Oxygen Concentrator

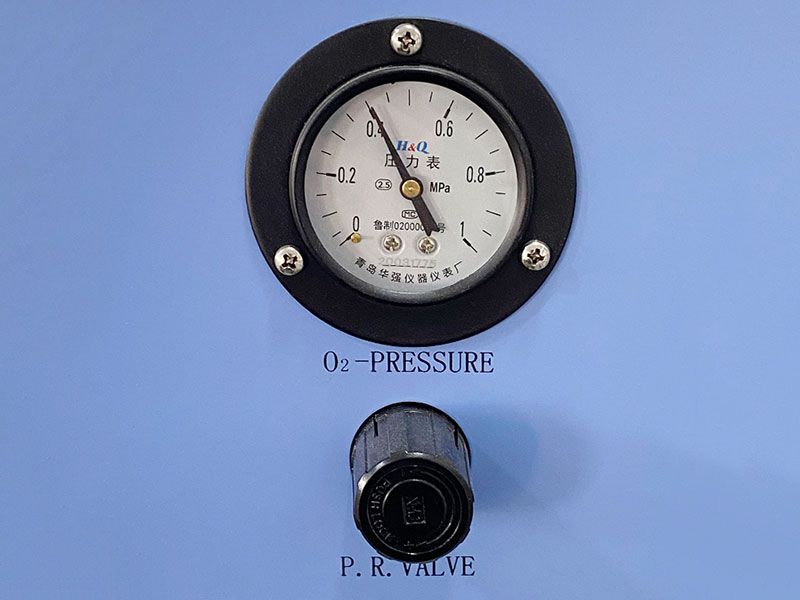

The high pressure oxygen generation plant we provide is produced with advanced technology and has outlet pressure of 0.14-0.4Mpa. Outlet pressure of ordinary oxygen generating equipment is only 0.04-0.07Mpa. Our high pressure oxygen concentrator is suitable for being used in the welding and cutting process in industrial fields and it can also be used to supply oxygen in fish farms.
Our JAY-10, JAY-15 and JAY-20 industrial oxygen concentrators (with high pressure of 0.14-0.4Mpa and ordinary pressure of 0.04-0.07Mpa) has the following advantages:
1. Our oxygen generating equipment adopts safe and economical PSA technology to produce oxygen.

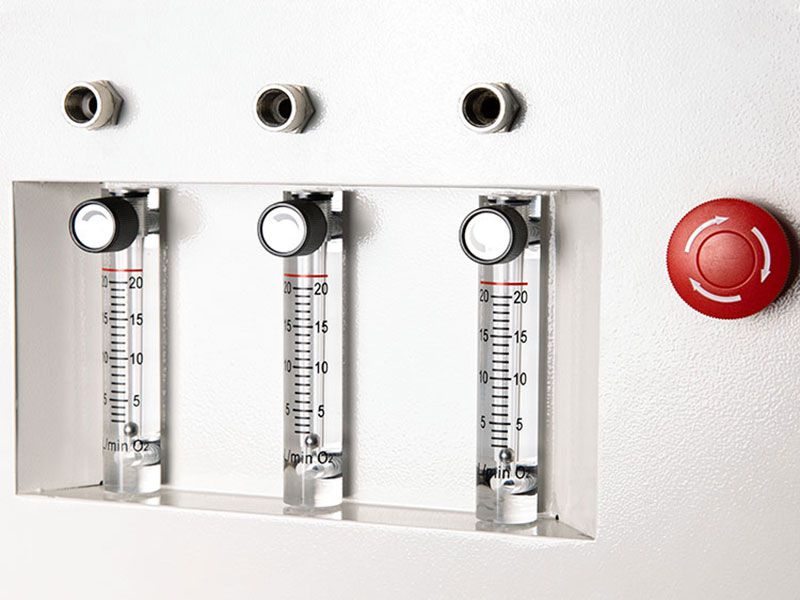

2. The flow rare is adjustable in the range of 0-20L/min.
3. Our oxygen concentrator is equipped with OCSI (oxygen concentration status display) and the oxygen concentration is adjustable. The highest oxygen concentration can be about 90%.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Our industrial oxygen gas generator has a large digital LCD display which can indicate the operating pressure, internal operating time, present working time, accumulated working time and the preset time.
6. Configured with temperature alarm, high/low pressure alarm and power failure alarm, this oxygen generating machine is safe to use in industrial production.
Technical Parameters
| Model | JAY-10 | JAY-15 | JAY-20 |
| Oxygen flow (L/min) | 0- 10 | 0-15 | 0- 20 |
| Oxygen concentration | 93% (± 3%) | ||
| Outlet pressure (Mpa) | 0.04-0.07/0.14-0.4 | ||
| Rated power (VA) | 550/600/850W | 1500/1550W | 1100/1800W |
| Operation voltage (V/Hz) | AC230V, 50Hz;Optional: AC220V/110V (±10%), 50/60 (±1Hz) | ||
| Alarm | Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional) | ||
| Sound level (dB) | ≤55 | ≤60 | ≤55/60 |
| LCD display | Accumulated timing; present timing; timing | ||
| Large LCD display (optional) | Pressure indication (accuracy: 0.001MPa); Accumulated working time (range: 0-10000hours); Present working time (accuracy:1 minute); Preset time (accuracy: 1 minute) Optional: temperature indication (accuracy: 0.1); Oxygen concentration indication Maintenance reminding |
||
| Electrical safety classification | Class II Type B | ||
| Product category | Class II a | ||
| Net Weight (kg) | 30/45/65 | 85/118 | 60/125 |
| Dimension (mm) | 380×380×560/ 365×375×600830×360×600 | 920×360 ×660mm 860×580×660mm | 700×390×530/ 860×640×660mm |
| Low concentration alarm (Optional) | When oxygen concentration is 85% or above, the blue lamp is on; when oxygen concentration is below 85%, the red lamp is on, indicating low concentration. | ||
