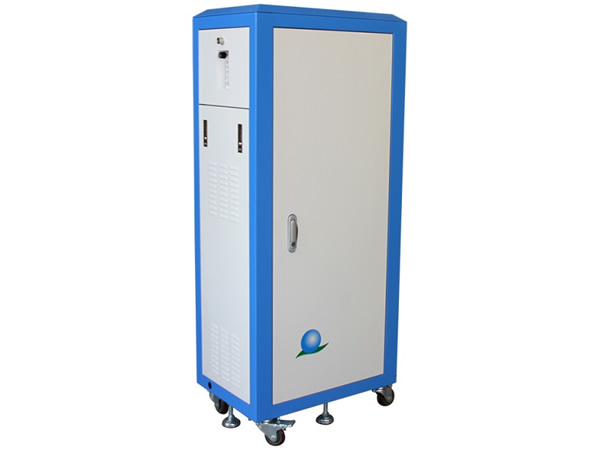

JAY-30/40/60

0-60L/Min Oxygen concentrator

Features
1. Dry, clean and oil-free.
2. Lightweight, easy and safe to operate.
3. Reliable and easy to maintain.
4. High flexibility, it can be moved to provide oxygen for different numbers of beds according to needs.
5. Energy saving and low power consumption.

Medical use

  • Connect the ventilator and anesthesia machine
  • Connect the small central oxygen supply system
  • Used in clinics and small hospitals, it can provide oxygen for 5-50 beds
  • Option to add pump: 2-8 Bar

Application

  • 1. Industrial use such as welding, glass cutting
  • 2. Fish farming, aquaculture
  • 3. Oxygen supply for ozone generator
  • 4. Oxygen supply in plateau areas. The 10-60Lpm oxygen concentrators can improve the concentration from 9% to 20% in the highland area such as at hotel, government agencies, schools, military camps and other public places.

Technical Parameter

Model JAY-30 JAY-40 JAY-60
Purity 93% (±3%)
Oxygen Flow (L/Min) 0-30LPM 0-40LPM 0-60LPM
Outlet Pressure 0.04-0.07MPA (6-10PSI)
Sound Level ≤60db
Power Consumption ≤1650w ≤2200w ≤3300w
LCD Display Switch times, operating pressure, present working time, accumulated working time
Net Weight 140Kgs 160Kgs 245Kgs
Alarm Low purity alarm ,High &low pressure alarm, Power failure alarm
Size 860*630*1580mm 860*630*1580mm 860*630*2120mm
